Translucent Blocks

To create a shader for an translucent block, you will need to create

a .glsl file to store shader code and
a .json file to denote which blocks to apply the shader

These files should be placed under the translucent folder.

GLSL Format

The shader code will be injected into /shaders/lib/materials/materialHandling/translucentMaterials.glsl.

The shader code is evaluated at every vertex of the block. In layman’s terms, the code is evaluated at every point on the block.

Inputs

You have access to the following within the shader code. The data type is indicated in front. This is a non-exhaustive list and only touches on the most commonly used variables.

int mat - The block id of the block being looked at, as assigned by Iris.
float frameTimeCounter - Tracks time passing within the game.

vec3 color.rgb - The color of the block within the block texture, for the currently evaluated part of the block. Each RGB value ranges between 0 and 1.
float color.a - The alpha component of the block within the block texture, for the currently evaluated part of the block. Ranges between 0 and 1.

vec2 lmCoordM - The lightmap at the currently evaluated part of the block . x is the blocklight, y is the skylight.
vec3 playerPos + cameraPosition - The sum provides the world-space coordinates of the part of the block currently being evaluated.
vec2 signMidCoordPos - Provides the displacement from the centre of the texture being used on that surface of the block.

float NdotU - The value of the dot product between the vector normal to the block surface and the vector pointing upwards.
vec3 normalM - The vector normal to the block surface.
vec3 eastVec - The vector pointing eastwards.

float fresnel - Ranges between 0 and 1 and provides the strength of the fresnel effect.

float skyLightCheck - Ranges between 0 and 1 and checks for the presence of sky light.
sampler2D noisetex - Used as a source of randomness. Can be read using texture2D(noisetex, coord) where coord is a vec2. The g component varies slowly while r and b components vary quickly.

Outputs

The following can be modified within the code. The data type is indicated in front. This is a non-exhaustive list and only touches on the most commonly used variables.

float materialMask = OSIEBCA * x - x is an integer denoting the deferred material being applied on this block. See … for more information.

float emission - Handles emissivity of the block.
float smoothnessG - Handles strength of reflection by the sun and moon.
float reflectMult - Handles strength of screenspace reflections.
float highlightMult - Controls strength of the multiplier for highlights.

vec4 translucentMult - Controls the color and transluency of the block. The first 3 components are the color, the last component is the alpha value / translucency.
float translucentMultCalculated - Enables the use of translucentMult to

vec2 lmCoordM - Used to modify the lightmap values.
vec3 color.rgb - Can be used to modify the color of the block.
float color.a - Can be used to modify the alpha value of the block.

vec3 maRecolor - After the color of the block has been modified by external lighting, performs color.rgb += maRecolor.

int subsurfaceMode - Controls the type of subsurface scattering used. 1 is for leaves and general foliage, 2 is for lily pads and 3 is for vines as well as snow & ice (if the option is enabled).

boolean noSmoothLighting - Controls whether or not smooth lighting is applied.
boolean noDirectionalShading - Controls whether or not directional shading is applied.

float overlayNoiseIntensity - Controls the intensity of overlaid noise when the moss / sand noise option is enabled.
float overlayNoiseEmission - Controls the emissivity of overlaid noise when the moss / sand noise option is enabled.
float overlayNoiseAlpha - Controls the translucency of the overlaid noise when the moss / sand noise option is enabled.

float sandNoiseIntensity - Controls the amount of sand to coat the block with, if the relevant option is enabled.
float mossNoiseIntensity - Controls the amount of moss to coat the block with, if the relevant option is enabled.

float noiseFactor - Adjusts the amount of noise added when COATED_TEXTURES is enabled.

JSON Format

The following are the parameters specified in the JSON. Bolded and italicized parameters are required.

name - The name of the type of block handled by the shader.
glsl - The relative path to the .glsl file. Currently only searches for files within the same folder as the .json file. or within a sub-folder of that folder.

mat<n> - Complementary Shaders divides the space of block IDs into blocks of block_size block IDs where block_size is a power of 2 and is at least 4. Each of these IDs are assigned to a list of blocks and within the .glsl code, this can be checked with mat % ... == ?.
blockSize - The number of block IDs this shader material will take up. Must be a power of 2 and greater than or equal to 4. If not specified, defaults to 4.

color - The color of the block for use in ACL. Can be either a list of length 4 or a single color. Colors are referenced through their resource locations. To indicate no color, use null. See this for more information.
tint - The tint of the block for use in ACL. A block can only have a color or a tint, but not both.

conditions - The conditions for the block to be assigned the ACL color specified above.
held_lighting - Either true or false. Controls if the block should light up surroundings when held by the player.
needs_voxelization - Specifies if voxelization is needed. Voxelization, when ACL is enabled, allows blocks to identify what blocks surround them.

Examples

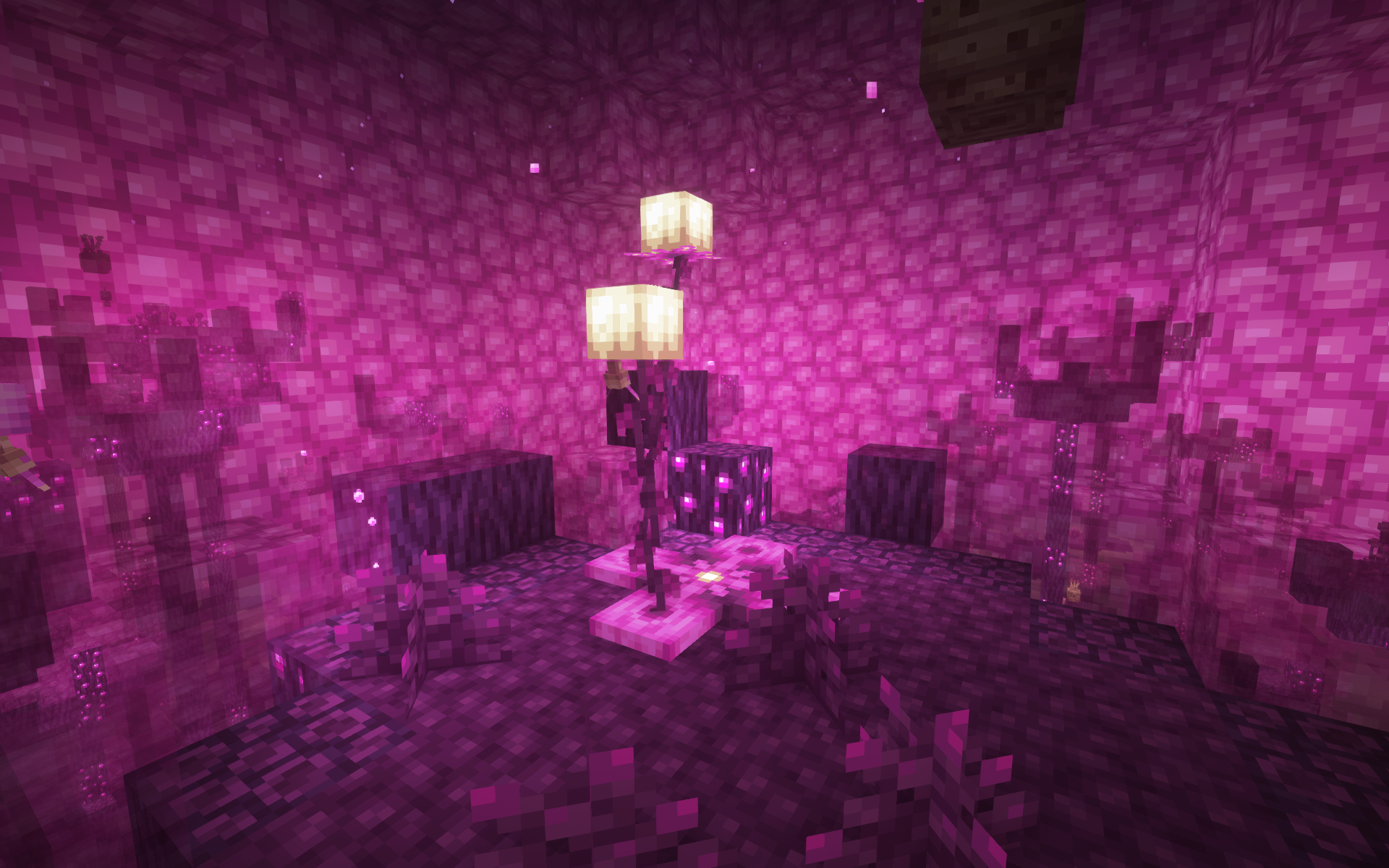

Poise Cluster

smoothnessG = 0.3 * color.r;

translucentMultCalculated = true;
reflectMult = pow2(color.r - color.g);
translucentMult.rgb = pow2(color.rgb);

highlightMult = 2.5;
overlayNoiseAlpha = 0.4;
sandNoiseIntensity = 0.2;
mossNoiseIntensity = 0.2;

{
  "name": "poise_cluster",
  "glsl": "poise_cluster.glsl",
  "mat0": [
    "endergetic:poise_cluster"
  ],
  "tint": "supplemental_patches:endergetic/poise_cluster"
}

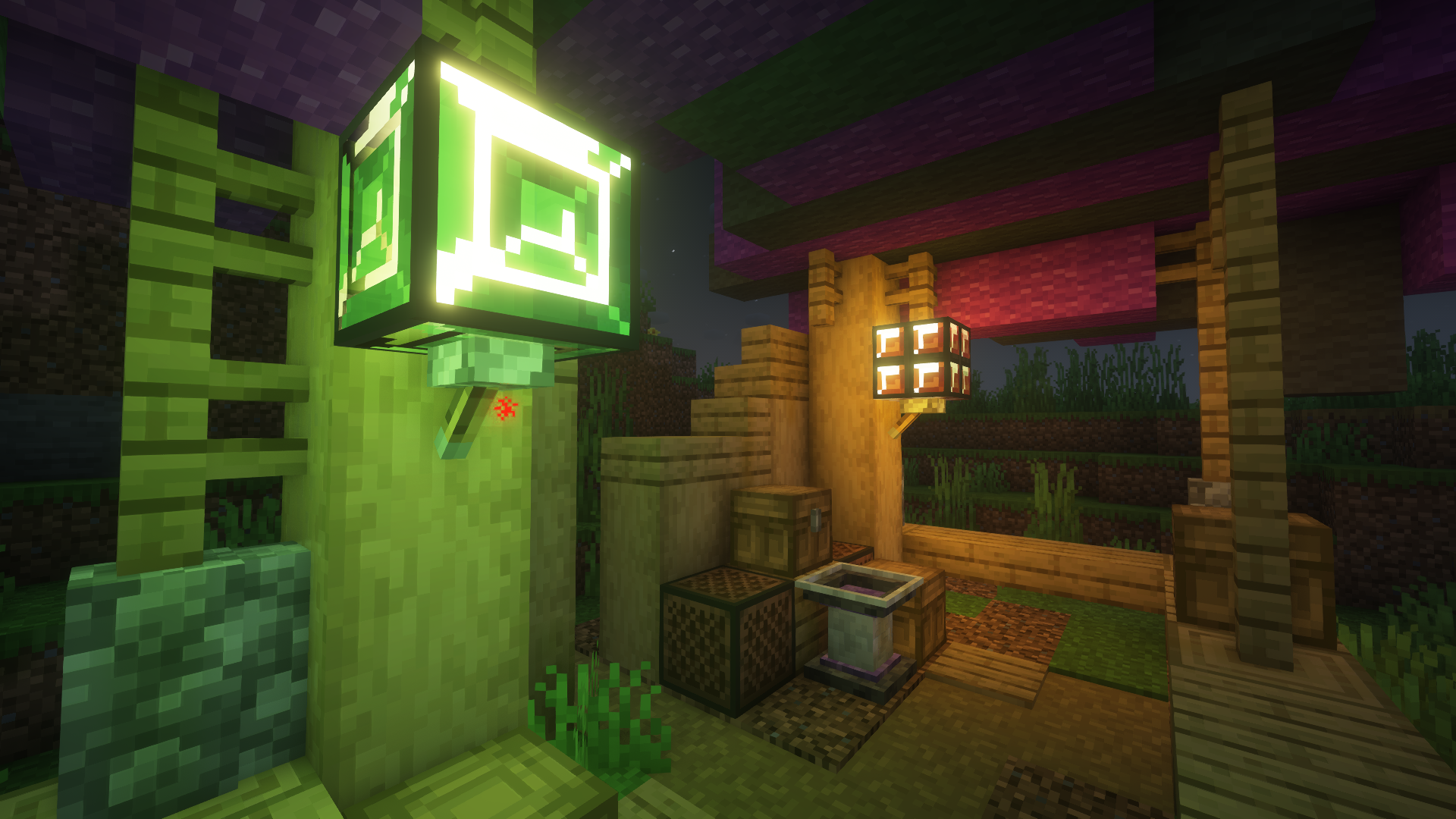

Corundum Lamps

float factor;
if (mat % 16 < 8) {
    factor = color.b;
} else if (mat % 8 < 4) {
    factor = 0.8 * color.g + 0.2 * color.r;
} else if (mat % 2 == 0) {
    factor = color.g;
} else {
    factor = (color.r + color.b + color.g) / 3;
}

float dotColor = dot(color.rgb, color.rgb);
translucentMultCalculated = true;
reflectMult = dotColor * 0.7 - factor * 0.2;
translucentMult.rgb = pow2(color.rgb) * 0.5;

smoothnessG = 1.2 - factor * 0.5;
highlightMult = factor * 3.0;

if (mat % 2) {
    noSmoothLighting = true;
    lmCoordM.x *= 0.88;

    emission = pow2(min(color.r, min(color.g, color.b))) * 7.0;
    if (color.r < color.b && color.r < color.g) {
        color.r *= 1.0 - emission * 0.07;
    } else if (color.g < color.r && color.g < color.b) {
        color.g *= 1.0 - emission * 0.07;
    } else {
        color.b *= 1.0 - emission * 0.07;
    }

    emission *= 1.3;

    overlayNoiseIntensity = 0.5;
}

{
  "name": "crystal_lamps",
  "glsl": "crystal_lamps.glsl",
  "mat0": [
    "quark:red_crystal_lamp:lit=true"
  ],
  "mat1": [
    "quark:red_crystal_lamp:lit=false"
  ],
  "mat2": [
    "quark:orange_crystal_lamp:lit=true"
  ],
  "mat3": [
    "quark:orange_crystal_lamp:lit=false"
  ],
  "mat4": [
    "quark:yellow_crystal_lamp:lit=true"
  ],
  "mat5": [
    "quark:yellow_crystal_lamp:lit=false"
  ],
  "mat6": [
    "quark:green_crystal_lamp:lit=true"
  ],
  "mat7": [
    "quark:green_crystal_lamp:lit=false"
  ],
  "mat8": [
    "quark:blue_crystal_lamp:lit=true"
  ],
  "mat9": [
    "quark:blue_crystal_lamp:lit=false"
  ],
  "mat10": [
    "quark:indigo_crystal_lamp:lit=true"
  ],
  "mat11": [
    "quark:indigo_crystal_lamp:lit=false"
  ],
  "mat12": [
    "quark:violet_crystal_lamp:lit=true"
  ],
  "mat13": [
    "quark:violet_crystal_lamp:lit=false"
  ],
  "mat14": [
    "quark:black_crystal_lamp:lit=true"
  ],
  "mat15": [
    "quark:black_crystal_lamp:lit=false"
  ],
  "color": [
    "supplemental_patches:quark/crystal_lamp/red",
    null,
    "supplemental_patches:quark/crystal_lamp/orange",
    null,
    "supplemental_patches:quark/crystal_lamp/yellow",
    null,
    "supplemental_patches:quark/crystal_lamp/green",
    null,
    "supplemental_patches:quark/crystal_lamp/blue",
    null,
    "supplemental_patches:quark/crystal_lamp/indigo",
    null,
    "supplemental_patches:quark/crystal_lamp/violet",
    null,
    "supplemental_patches:quark/crystal_lamp/black",
    null
    ],
  "block_size": 16
}

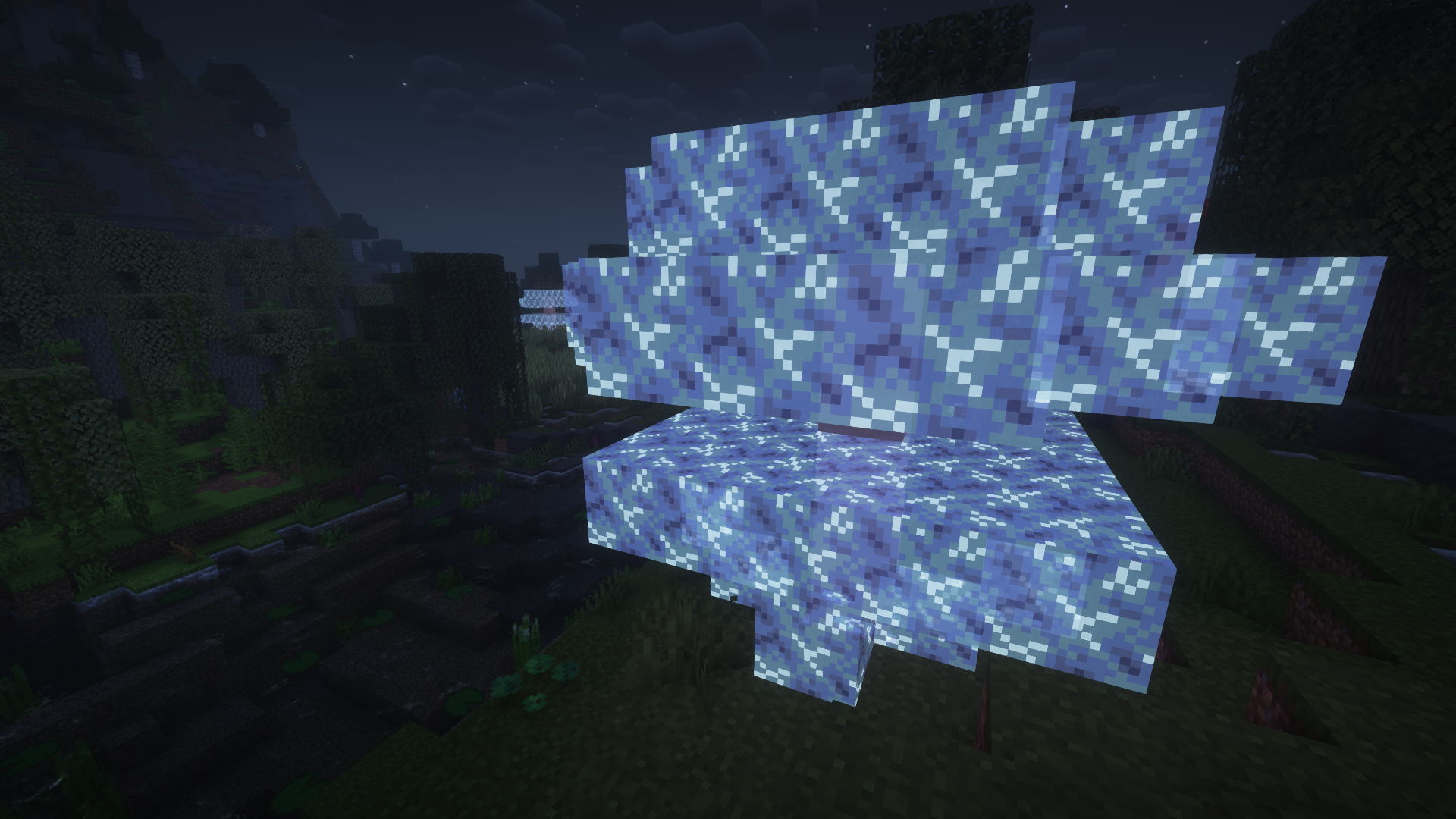

Aria Mushrooms

emission = 2.0 * pow2(color.r) + 0.2 * pow2(color.b);
smoothnessG = 0.3 * color.r;

translucentMultCalculated = true;
reflectMult = max0(1.2 - emission);
translucentMult.rgb = pow2(color.rgb) * 0.4;

highlightMult = 2.5;
overlayNoiseAlpha = 0.4;
sandNoiseIntensity = 0.5;
mossNoiseIntensity = 0.5;

{
  "name": "aria_mushroom",
  "glsl": "aria_mushroom.glsl",
  "mat0": [
    "wetland_whimsy:aria_mushroom_block"
  ],
  "color": "supplemental_patches:wetland_whimsy/aria_mushroom",
  "heldLighting": true
}
